This product is available only purchase at Retail Store or online for local pickup.

  • In stock, ready to ship
  • Inventory on the way
Regular price$3,119.00
/
Shipping calculated at checkout.
Type
Color
  • Live Arrival Guarantee
  • Fast shipping
  • All our live fish, shrimp, snails are care with love and passion, when through minimum of 14 days quarantined and shipped from Splashy Fish facility in Springfield, Virginia, USA

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

INFINIA FRAG

Product Model INFINIA

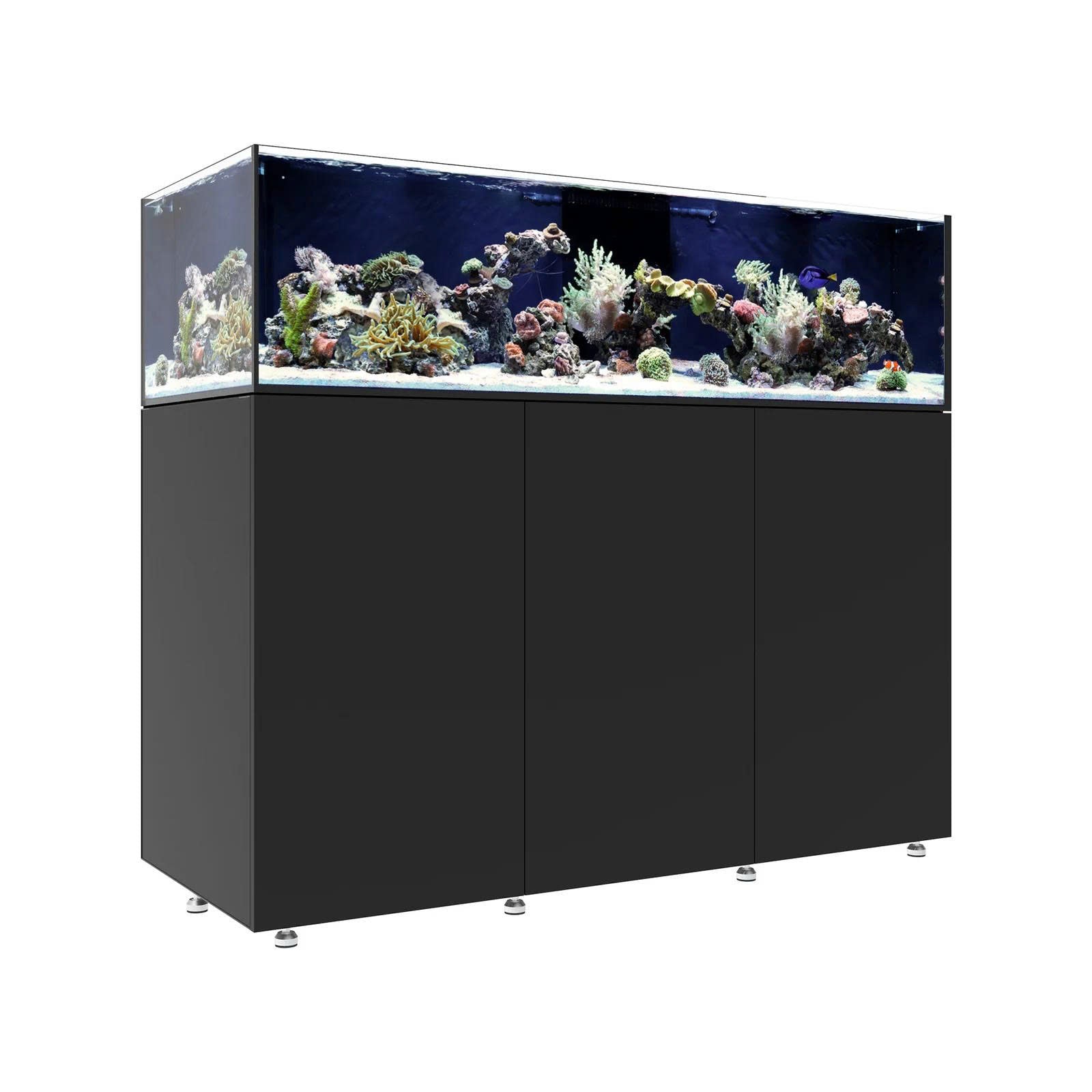

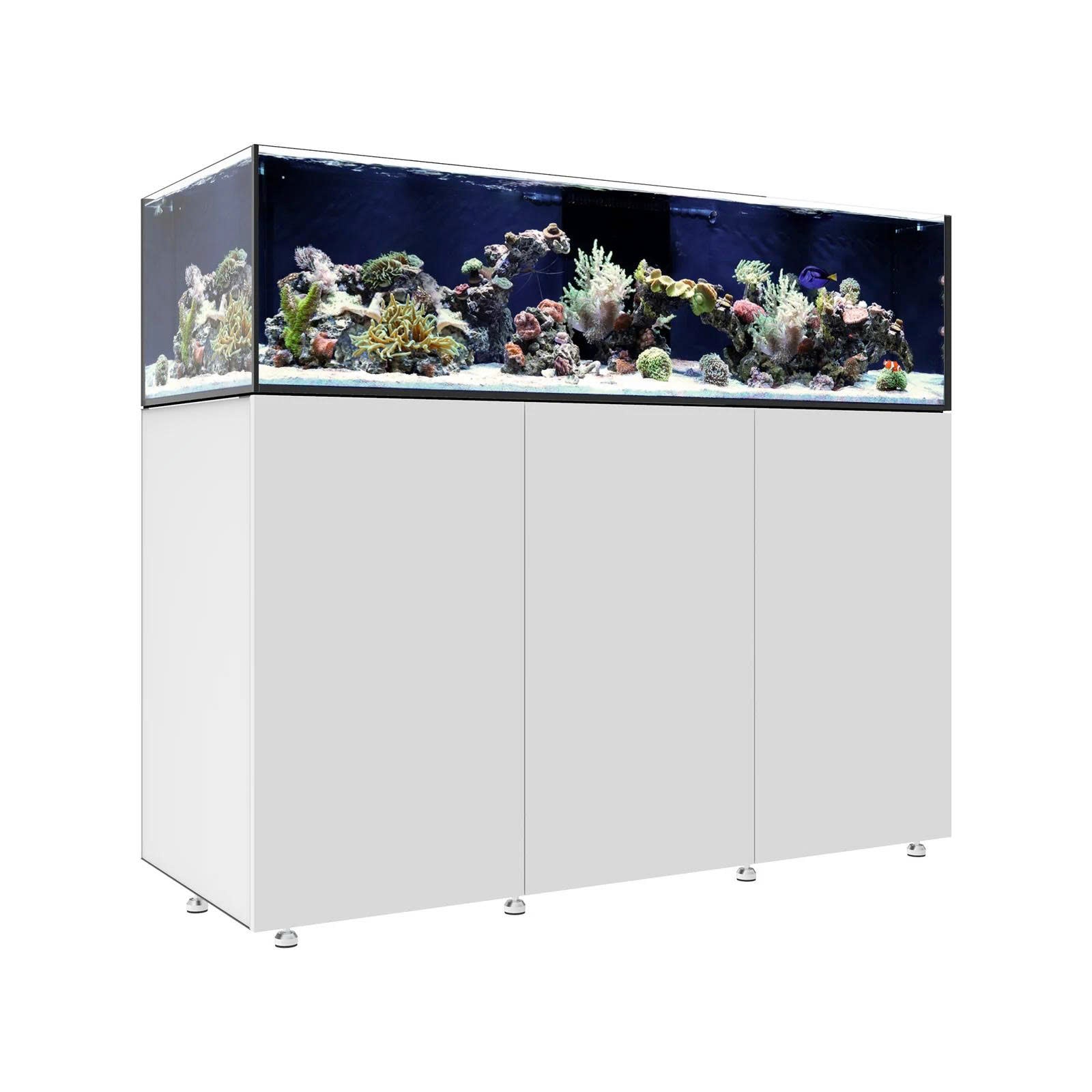

FRAG 125.4
INFINIA
FRAG 155.5
INFINIA

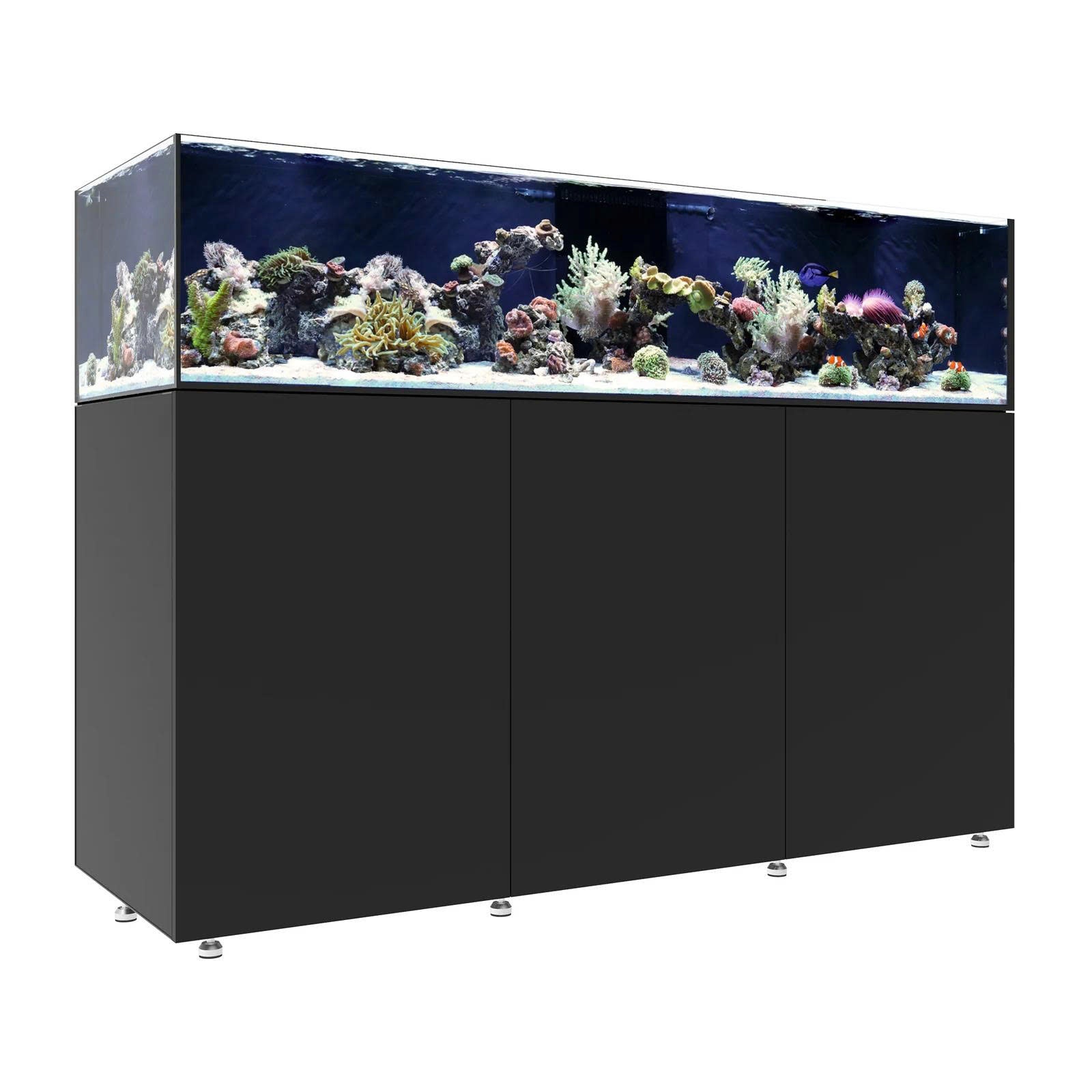

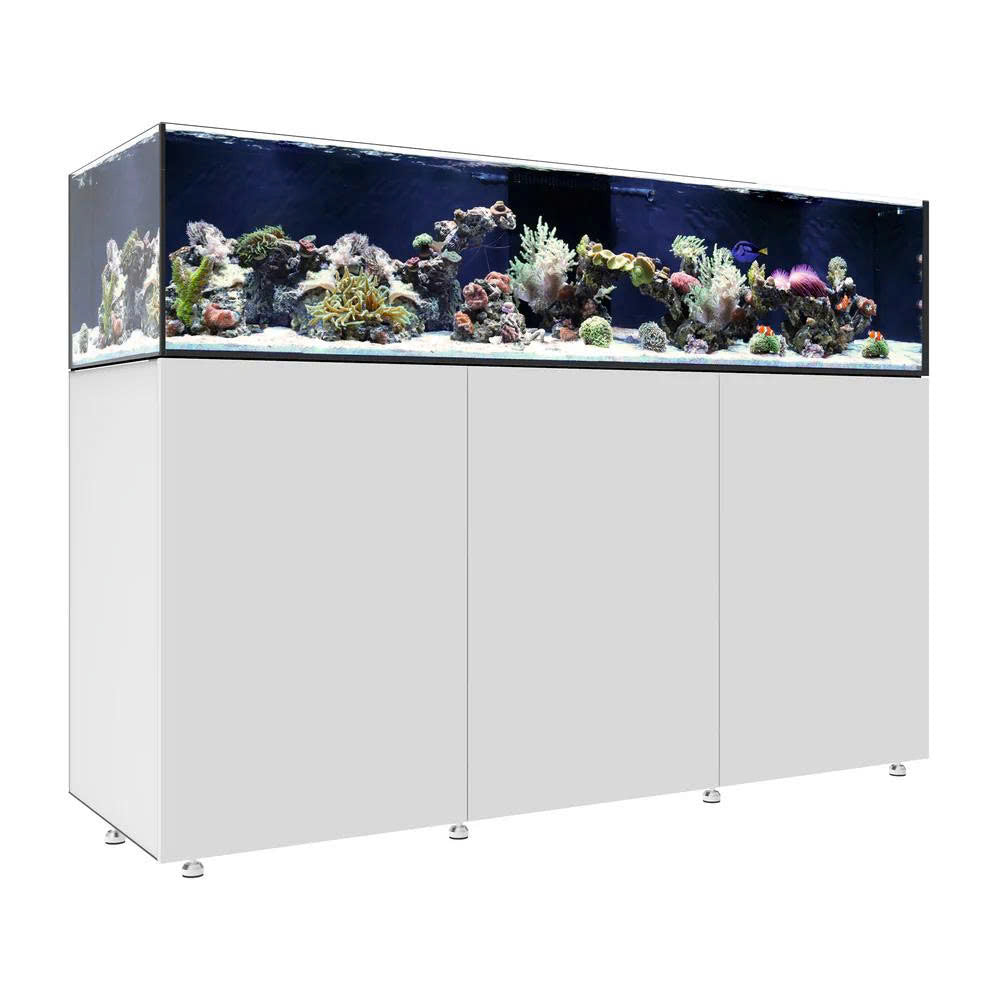

FRAG 175.6
System Height with Cabinet 1,337mm/52.6" 1,337mm/52.6" 1,337mm/52.6"
Total Volume with ATO 469 L/123.8 gals 585 L/154.6 gals 690 L/182.2 gals
Total System Weight 175 kg/386 lbs 211 kg/465 lbs 232 kg/511 lbs
Display
Tank
Tank Dimensions 1,223 x 643 x 410mm 1,536 x 643 x 410mm 1,836 x 643 x 410mm
48.2" × 25.3" × 16.1" 60.5" × 25.3" × 16.1" 72.3" × 25.3" × 16.1"
Glass Thickness 12mm (1/2") 12mm (1/2") 12mm (1/2")
Aquarium Volume 295 L/78 gals 372 L/98.4 gals 446 L/117.9 gals
Aquarium Weight 82 kg/181 lbs 98 kg/216 lbs 113 kg/249 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 838 x 475 x 380mm 965 x 475 x 380mm 1,143 x 475 x 380mm
34" × 18.7" × 15" 42" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 140 L/37.1 gals 162 L/42.8 gals 192 L/50.8 gals
Sump Weight  40 kg/88 lbs  45 kg/99 lbs  48 kg/106 lbs
Glass Thickness 8mm (5/16")
Refugium Chamber
(Max Int. Dimensions)
180 x 400mm 250 x 400mm 300 x 400mm
7.1" × 15.8" 9.8" × 15.8" 11.8" × 15.8"
Refugium Chamber
(Min Int. Dimensions)
140 x 400mm 200 x 400mm 230 x 400mm
5.5" × 15.8" 7.9" × 15.8" 9.1" × 15.8"
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm 528 x 400mm 676 x 400mm
16.4" × 15.8" 20.8" × 15.8" 26.6" × 15.8"
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm 323 x 400mm 441 x 400mm
10.7" × 15.8" 12.7" × 15.8" 17.4" × 15.8"
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm 273 x 400mm 371 x 400mm
9.1" × 15.8" 10.7" × 15.8" 14.6" × 15.8"
Pump Chamber
(Int. Dimensions)
135x 400mm 150 x 400mm 180 x 400mm
5.3" × 15.8" 5.9" × 15.8" 7.1" × 15.8"
ATO
Tank
ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8" × 18.7" × 15" 12" × 18.7" × 15"
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
ATO Weight 9 kg/20 lbs 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" FELT
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2" × 25.3" × 36.5" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm 1,495 x 541 x 849mm 1,795 x 541 x 849mm
46.5" × 21.6" × 33.4" 58.9" × 21.3" × 33.4" 70.7" × 21.3" × 33.4"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Weight 44 kg/97 lbs 57 kg/126 lbs 60 kg/132 lbs
Cabinet Color

WHT-White, BLK-Black



INFINIA REEF

Product Model INFINIA
REEF 150.4
INFINIA
REEF 190.5
INFINIA

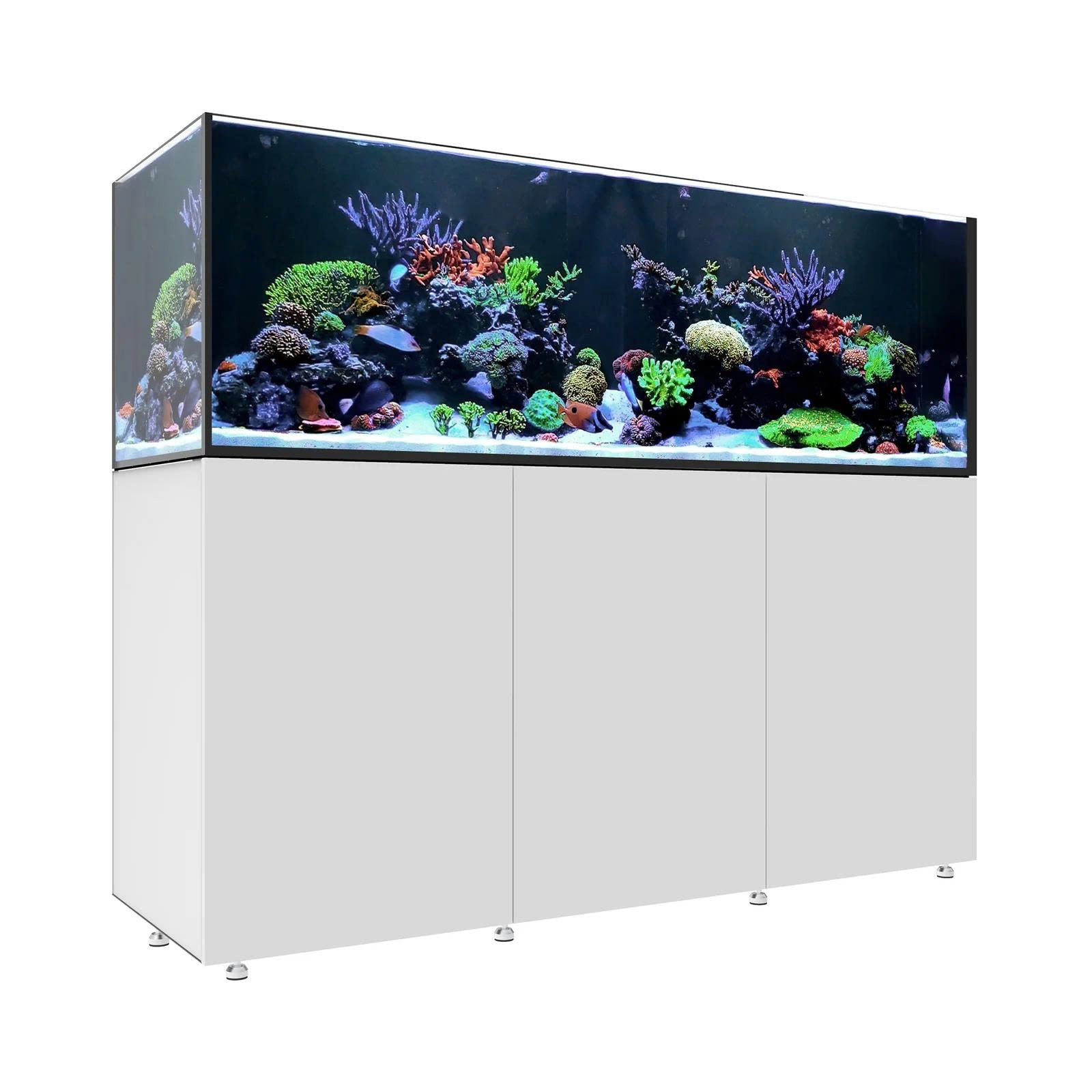

REEF 230.6
System Height with Cabinet 1,477mm/58.2" 1,502mm/59.1" 1,527mm/60.1"
Total Volume with ATO 573 L/151.3 gals 730 L/192.8 gals 875 L/231.2 gals
Total System Weight 191 kg/421 lbs 259 kg/571 lbs 330 kg/728 lbs
Display
Tank
Tank Dimensions 1,223 x 643 x 550mm 1,536 x 643 x 575mm 1,836 x 643 x 600mm
48.2" × 25.3" × 21.7" 60.5" × 25.3" × 22.6" 72.3" × 25.3" × 23.6"
Glass Thickness 12mm (1/2") 15mm (3/5″) 19mm (3/4")
Aquarium Volume 399 L/105.5 gals 517 L/136.6 gals 632 L/167 gals
Aquarium Weight 98 kg/216 lbs 146 kg/322 lbs 211 kg/465 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 838 x 475 x 380mm 965 x 475 x 380mm 1,143 x 475 x 380mm
33" × 18.7" × 15" 38" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 140 L/37.1 gals 162 L/42.8 gals 192 L/50.8 gals
Sump Weight  40 kg/88 lbs  45 kg/99 lbs  48 kg/106 lbs
Glass Thickness 8mm (5/16")
Refugium Chamber
(Max Int. Dimensions)
180 x 400mm 250 x 400mm 300 x 400mm
7.1" × 15.8" 9.8" × 15.8" 11.8" × 15.8"
Refugium Chamber
(Min Int. Dimensions)
140 x 400mm 200 x 400mm 230 x 400mm
5.5" × 15.8" 7.9" × 15.8" 9.1" × 15.8"
Skimmer Chamber
(Int. DIM, w/o Refugium)
416 x 400mm 528 x 400mm 676 x 400mm
16.4" × 15.8" 20.8" × 15.8" 26.6" × 15.8"
Skimmer Chamber
(Int. DIM, with Min Refugium)
271 x 400mm 323 x 400mm 441 x 400mm
10.7" × 15.8" 12.7" × 15.8" 17.4" × 15.8"
Skimmer Chamber
(Int. DIM, with Max Refugium)
231 x 400mm 273 x 400mm 371 x 400mm
9.1" × 15.8" 10.7" × 15.8" 14.6" × 15.8"
Pump Chamber
(Int. Dimensions)
135x 400mm 150 x 400mm 180 x 400mm
5.3" × 15.8" 5.9" × 15.8" 7.1" × 15.8"
ATO
Tank
ATO Dimensions 203 x 475 x 380mm 305 x 475 x 380mm
8" × 18.7" × 15" 12" × 18.7" × 15"
ATO Volume 33 L/8.7 gals 51 L/13.4 gals
ATO Weight 9 kg/20 lbs 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" FELT
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model MSII 4825 MSII 6025 MSII 7225
Cabinet Dimensions 1,223 x 643 x 927mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
48.2" × 25.3" × 36.5" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1182 x 549 x 849mm 1,495 x 541 x 849mm 1,795 x 541 x 849mm
46.5" × 21.6" × 33.4" 58.9" × 21.3" × 33.4" 70.7" × 21.3" × 33.4"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door Panels Double-sided 18mm PET laminated Wood Oriented Strand Board
Side Panels Aluminum Composite
Bottom Panels 10mm PVC Board
Back Panels 5mm PVC Board
Cabinet Weight 44 kg/97 lbs 57 kg/126 lbs 60 kg/132 lbs
Cabinet Color WHT-White, BLK-Black



INFINIA PENINSULA

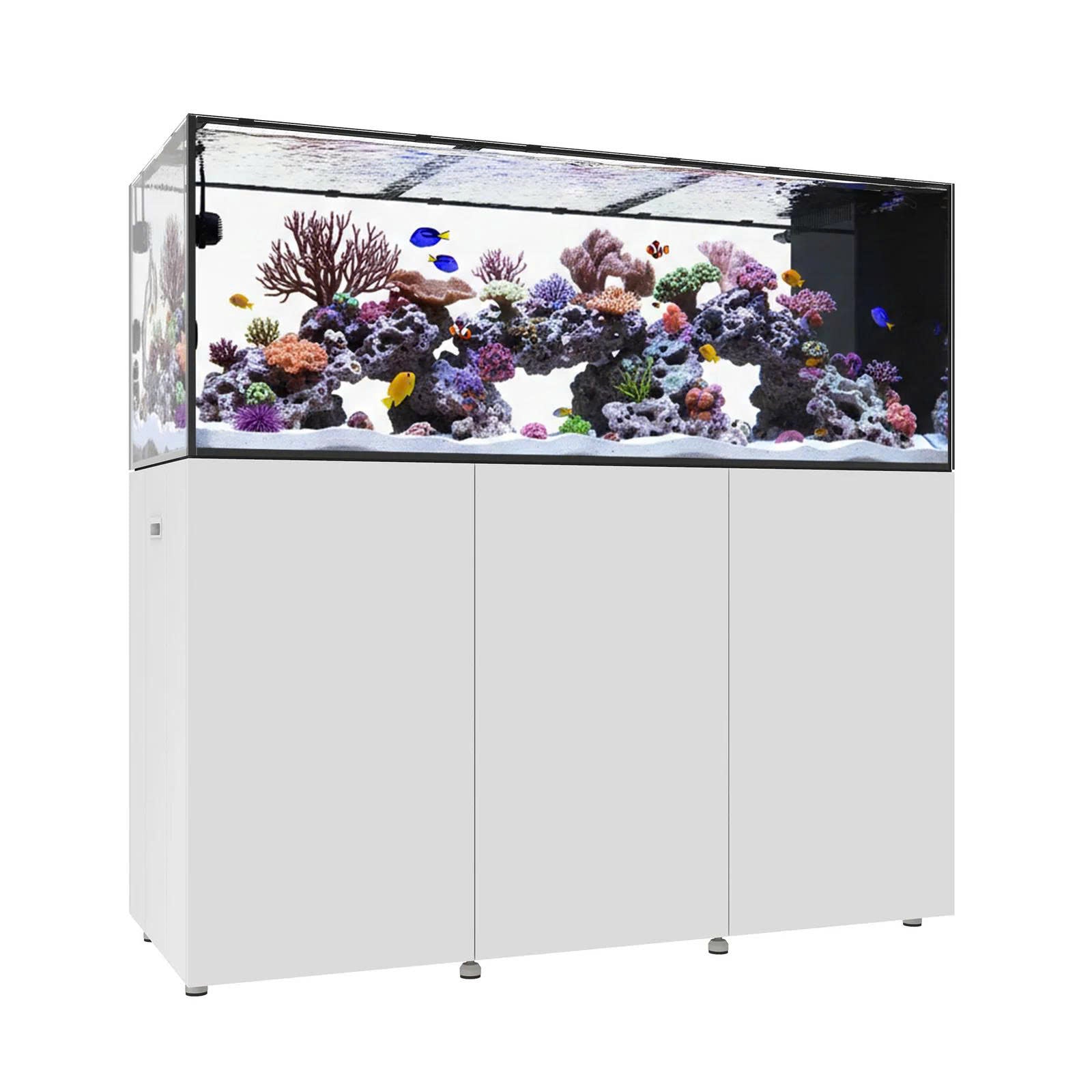

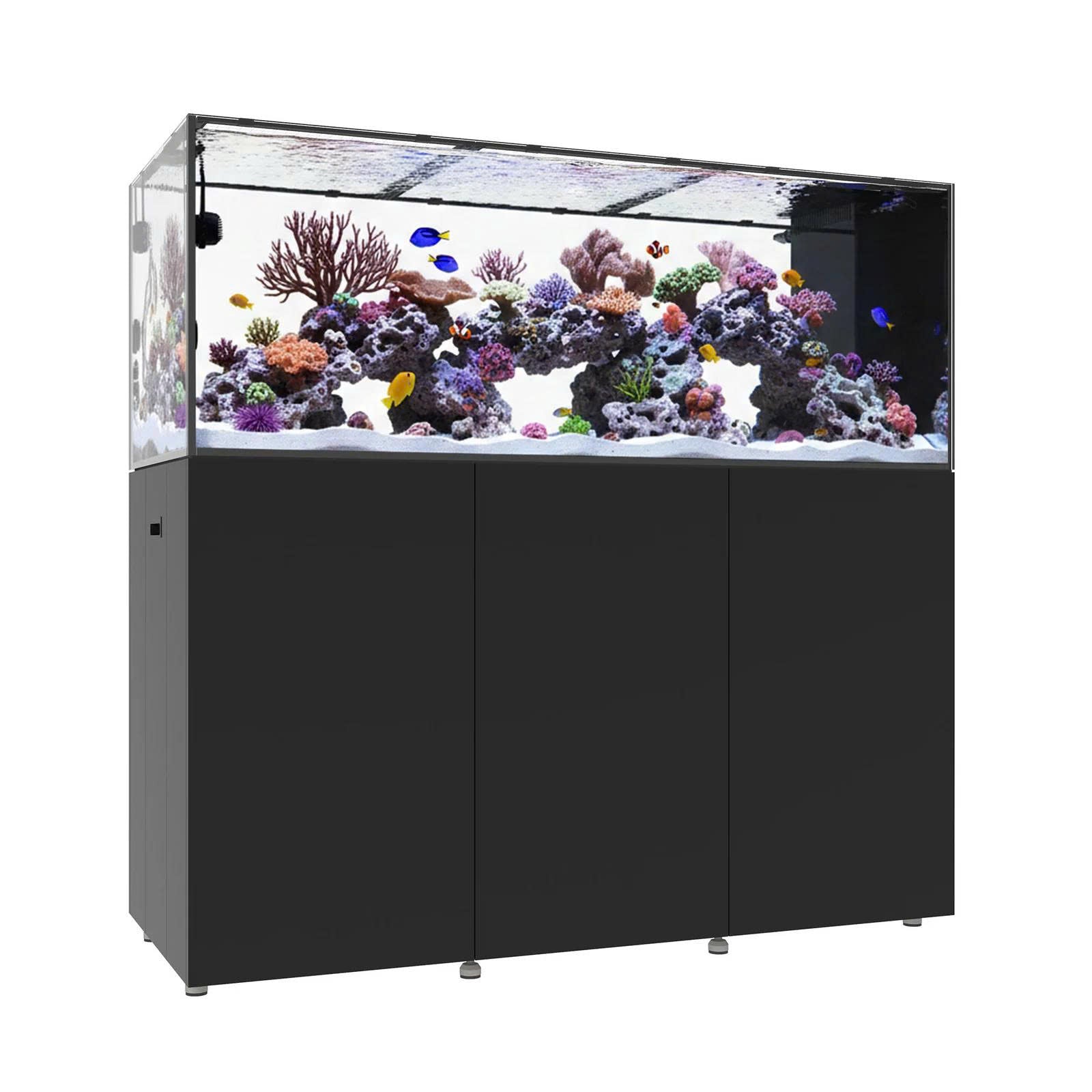

Product Model INFINIA PENINSULA 6025 INFINIA PENINSULA 7225
System Height with Cabinet 1,502mm/59.1" 1,527mm/60.1"
Total Volume with ATO 738 L/195.1 gals 875 L/231.2 gals
Total System Weight 271 kg/597 lbs 349 kg/769 lbs
Display
Tank
Tank Dimensions 1,536 x 643 x 575mm 1,836 x 643 x 600mm
60.5" × 25.3" × 22.6" 72.3" × 25.3" × 23.6"
Glass Thickness 15mm (3/5″) 19mm (3/4")
Aquarium Volume 517 L/136.6 gals 632 L/167 gals
Aquarium Weight  144 kg/317 lbs 210 kg/463 lbs
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 1,016 x 475 x 380mm 1,143 x 475 x 380mm
40" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 171 L/45.1 gals 192 L/50.8 gals
Sump Weight  44 kg/97 lbs  47 kg/104 lbs
Glass Thickness 8mm (5/16") 8mm (5/16")
Refugium Chamber
(Max Int. Dimensions)
250 x 413mm 300 x 413mm
9.8" × 16.3" 11.8" × 16.3"
Refugium Chamber
(Min Int. Dimensions)
200 x 413mm 230 x 413mm
7.9" × 16.3" 9.1" × 16.3"
Skimmer Chamber
(Int. DIM, w/o Refugium)
546 x 413mm 673 x 413mm
21.5" × 16.3" 26.5" × 16.3"
Skimmer Chamber
(Int. DIM, with Min Refugium)
341 x 413mm 438 x 413mm
13.4" × 16.3" 17.2" × 16.3"
Skimmer Chamber
(Int. DIM, with Max Refugium)
291 x 413mm 368 x 413mm
11.5" × 16.3" 14.5" × 16.3"
Pump Chamber
(Int. Dimensions)
192 x 382mm 192 x 382mm
7.6" × 15" 7.6" × 15"
ATO
Tank
ATO Dimensions 305 x 475 x 380mm
12" × 18.7" × 15"
ATO Volume 51 L/13.4 gals
ATO Weight 11 kg/24 lbs 11 kg/24 lbs
Glass Thickness 6mm (1/4")
Plumbing Main Drain DN32 (ID: 32mm OD: 40mm)
Emergency Overflow DN32 (ID: 32mm OD: 40mm)
Pump Return DN25 (ID: 25mm OD: 32mm)
Return Hose lD: 25mm OD: 31mm
Nozzle(s) (Thread Size) 2 x M25 (25mm)
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 2 x 180mm/7" FELT
Filter Sock Silencers 2 x 180mm/7"
Interchangable with Roller Filter
Cabinet Cabinet Model ALP 6025 ALP 7225
Cabinet Dimensions 1,536 x 643 x 927mm 1,836 x 643 x 927mm
60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1,410 x 543 x 785mm 1,710 x 543 x 785mm
55.5" × 21.4" × 30.9" 67.3" × 21.4" × 30.9"
Cabinet Framework  Anti-corrosion Aluminum Alloy
Door & Side Panels 18mm PVC Laminated Wood Oriented Strand Board
Bottom Panels 10mm PVC Board
Cabinet Weight 72 kg/159 lbs 81 kg/179 lbs
Cabinet Color WHT-White, BLK-Black
